1. Technical Specifications

2. Key Features

• High-Strength Die-Cast Aluminum: Engineered from premium anti-corrosion marine aluminum alloy, providing excellent rigidity to absorb propeller reverse thrust loads and torsional vibration.

• Yamaha 8D Marine Baked Coating: Factory-standard multi-layer passivation and baked enamel finish prevent galvanic blister corrosion and pitting in harsh saltwater environments.

• Precision CNC Machined Bores: Micron-level machining tolerances on bearing races and seal pockets guarantee perfect concentricity, extending oil seal lifespan and preventing leaks.

• Direct OEM Fitment: Flange bolt centers and outer O-ring groove dimensions match factory specifications exactly for straightforward drop-in installation during lower unit rebuilds.

3. Compatible Models

Primarily compatible with Yamaha 40HP, 50HP, and 60HP 2-stroke and 4-stroke outboard models:

• Yamaha 2-Stroke Series: 40V, 40X, 50H, 50J 3-cylinder models

• Yamaha 4-Stroke Series: F40 (F40D, F40F, F40LA), F50 (F50F, F50H, T50), F60 (F60C, F60F, T60)

• Outboard Clones: Compatible with Parsun, Hidea, and other brands utilizing the Yamaha 63D gearcase architecture

4. Aftermarket & Brand Compatibility

• OEM Brand Fitment:

• Yamaha Marine: Designed for genuine Yamaha 40HP to 60HP lower casing drivetrain and propeller shaft sealing systems.

• PREMARINE Brand Aftermarket Replacement:

• PREMARINE Quality Standard: PREMARINE specializes in high-reliability marine gearcase components, drivetrain castings, and sealing hardware. This lower casing cap is manufactured using high-density void-free alloys and precision CNC machining.

• Direct OEM-Level Performance: Concentricity, seal seat micro-finish, and hydrostatic pressure retention meet or exceed OEM standards, making it the premier cost-effective choice for resolving gearcase water leaks and completing lower unit overhauls.

5. Common Symptoms & Troubleshooting

• Milky / Emulsified Gearcase Oil (Seawater Contamination):

• Cause: Flattened outer O-ring, or fishing line wrapped around the propeller shaft cutting the seals and scoring the carrier seal bore.

• Troubleshooting: Drain gear lube to check for water contamination; remove propeller and inspect the carrier nose. If the internal seal journal is deeply gouged, replace the carrier assembly.

• Severe Galvanic Pitting or Cracked Flange Mounting Ears:

• Cause: Sacrificial zinc anode depletion causing galvanic corrosion, or overtightening of mounting bolts during previous service.

• Troubleshooting: Inspect the bolt ears and outer ring for flaking metal or hairline cracks; replace the carrier if structural integrity is compromised.

• Reverse Gear Whine or Excessive Propeller Shaft End-Play:

• Cause: Worn reverse thrust contact face inside the bearing cap allowing axial shaft sloppiness.

• Troubleshooting: Check propeller shaft axial play with a dial indicator; replace the carrier if internal thrust faces are excessively grooved.

OEM Part Numbers

Compatible OEM references include:

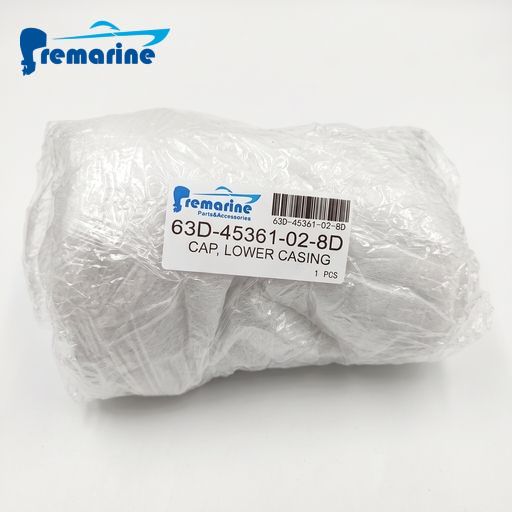

63D-45361-02-8D

63D-45361-02-CA

63D-45361-01-8D

63D-45361-00

Compatible Engine Models

This Lower Casing Cap is primarily designed for:

2-Stroke 40/50HP

4-Stroke 40/50/60HP

If you are unsure about compatibility, please provide your engine model number or identification plate for verification before ordering.

Applications

This Lower Casing Cap is commonly used for:

Outboard engine repair

Engine rebuilding projects

Marine maintenance workshops

Boat fleet maintenance

Commercial fishing vessels

Recreational boats

Marine spare parts distribution
