1. Technical Specifications

2. Key Features & Functionality

• Accurate Stroke Translation & Zero Backlash: Precision CNC-machined pivot pin receiver and clamp slot eliminate mechanical play, ensuring crisp detent positioning and full gear dog engagement.

• Corrosion-Resistant Marine Metallurgy: Cast from premium low-copper alloy to withstand continuous saltwater spray and condensation within the upper midsection enclosure.

• High Torsional Rigidity: Engineered with reinforced load ribs to absorb high-stress shifting impacts without bending, twisting, or fracturing.

• Direct OEM Fitment: Pivot hole diameters, clamp pinch gap, and lever throw radii conform strictly to factory engineering drawings for exact drop-in replacement.

3. Compatible Models

Primarily compatible with Yamaha 9.9HP and 15HP twin-cylinder portable outboard platforms:

• Yamaha 2-Stroke 9.9HP / 15HP Series: 9.9F, 15F, 9.9D, 15D, E9.9D, E15D (63V / 63W architecture)

• Yamaha 4-Stroke 9.9HP / 15HP Series: F9.9, F15 (early models utilizing the 63V midsection shift linkage)

• Outboard Clones: Compatible with Parsun (T9.9 / T15), Hidea (HD9.9 / HD15), Powertec, Seapro, and other outboards built on the Yamaha 63V platform

4. Aftermarket & Brand Compatibility

• OEM Brand Fitment:

• Yamaha Marine: Designed for genuine Yamaha 9.9HP and 15HP shift rod linkage and gear selector mechanisms.

• PREMARINE Brand Aftermarket Replacement:

• PREMARINE Quality Standard: PREMARINE specializes in high-reliability marine shift mechanisms, control levers, and driveline linkages. This shift rod arm is manufactured with automated precision die-casting and tight-tolerance CNC boring lines.

• Direct OEM-Level Performance: Pivot pin clearance, clamping tensile strength, and fatigue resistance meet or exceed OEM specifications, serving as the premier cost-effective solution for curing sloppy gear shifting or broken levers.

5. Common Symptoms & Troubleshooting

• Stiff Shift Handle / Inability to Shift into Forward or Reverse:

• Cause: Salt crust buildup or galling inside the shift lever pivot bushing due to lack of marine grease.

• Troubleshooting: Disassemble the pivot, clean salt and corrosion deposits, and lubricate with marine waterproof grease; replace the arm if pivot bore is scored.

• Gear Slipping Out of Engagement (Jumping Out of Gear) or Lost Neutral:

• Cause: Shift rod pinch bolt loosened, allowing the vertical shift rod to slip out of adjustment, or an elongated/wobbled-out pivot hole.

• Troubleshooting: Inspect the clamp bolt torque; if the pin bore is ovalized, replace the lever arm and readjust gearcase shift stroke.

• Cracked Clamp Ear or Snapped Lever Web:

• Cause: Forcing the shift handle while lower unit dog teeth are misaligned (stationary shifting), or over-torquing the pinch bolt.

• Troubleshooting: Inspect the clamping boss for stress cracks; replace any fractured component immediately to avoid losing gear selection on the water.

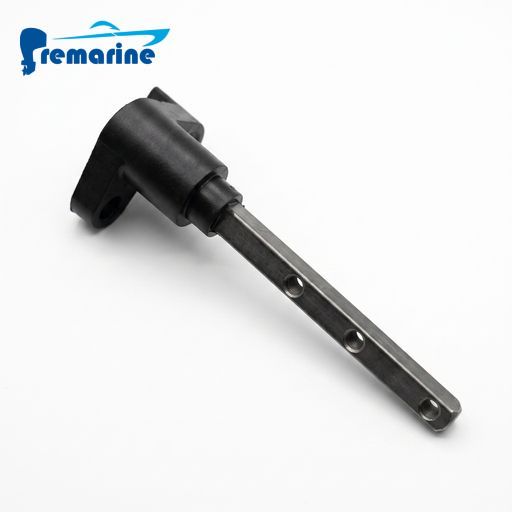

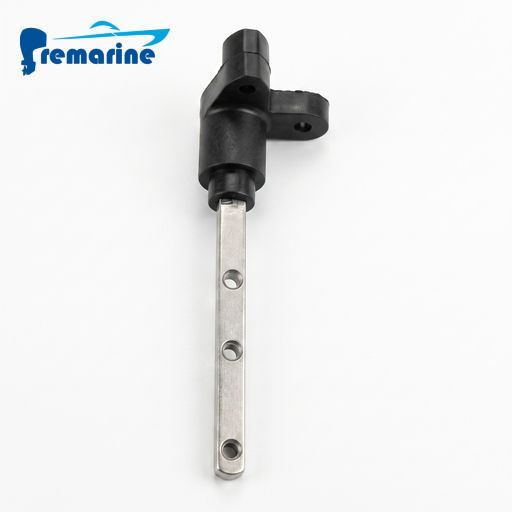

OEM Part Numbers

Compatible OEM references include:

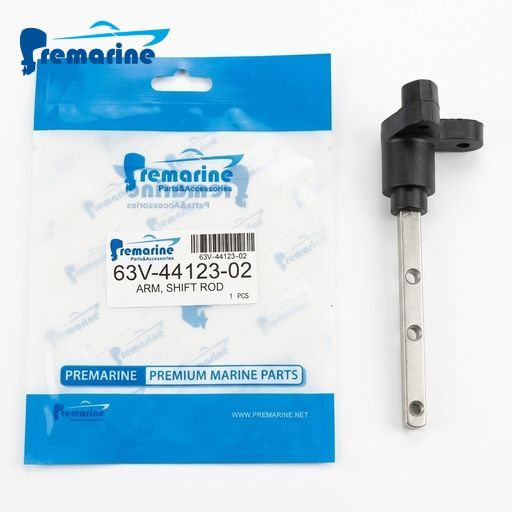

63V-44123-02

63V-44123-02-00

63V-44123-01

63V-44123-00

Compatible Engine Models

This Shift Rod Lever Arm is primarily designed for:

2-Stroke 9.9/15HP

4-Stroke 9.9/15HP

If you are unsure about compatibility, please provide your engine model number or identification plate for verification before ordering.

Applications

This Shift Rod Lever Arm is commonly used for:

Outboard engine repair

Engine rebuilding projects

Marine maintenance workshops

Boat fleet maintenance

Commercial fishing vessels

Recreational boats

Marine spare parts distribution
