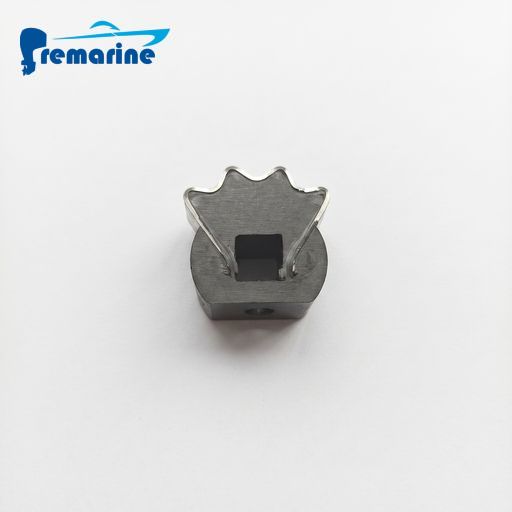

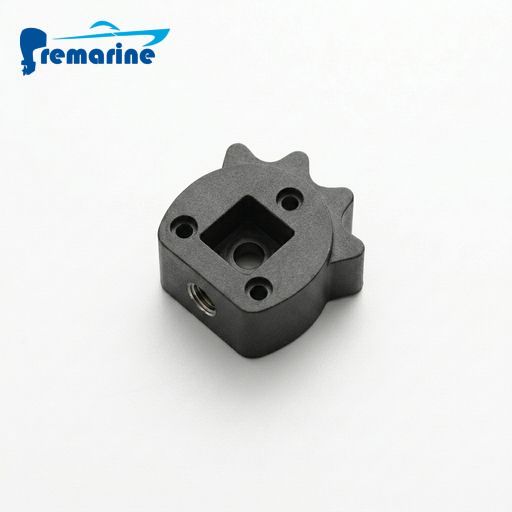

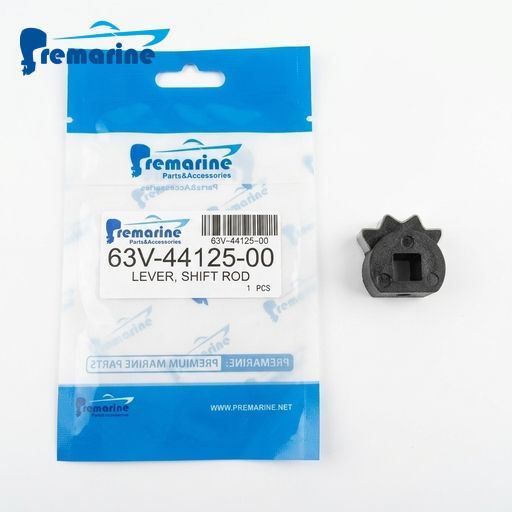

63V-44125-00 63V-44125-00-00 63V-44125-01
PREMARINE
| Quantity: | |
|---|---|
1. Technical Specifications
| Parameter | Specification / Detail |
| Component Type | Marine Outboard Shift Rod Lever / Shift Arm |
| OEM & Interchange Part Numbers | 63V-44125-00-00 / 63V-44125-00 / 63V-44125-01-00 / 63V-44125-01 |
| Engine Configuration | 2-Cylinder 2-Stroke Marine Outboard Engines |
| Horsepower / Displacement | 9.9 HP / 15 HP (246cc 63V / 6B4 platform) |
| Material Composition | Marine-grade corrosion-resistant cast alloy / stainless steel hardware provisions |
| Installation Location | Mid-section / Lower casing shift linkage assembly |
2. Key Features
Crisp Gear Shift Engagement: Engineered with exact factory leverage ratios and angular travel to ensure positive, definite engagement across Forward, Neutral, and Reverse gears.
Marine Corrosion Resistance: Constructed from high-spec marine alloy with anti-corrosion surface treatment to prevent oxidation, salt crust seizing, and galvanic pitting.
High Torsional Rigidity: Reinforced structural ribbing resists bending, twisting, and fatigue under continuous shift cycling, ensuring consistent long-term stroke accuracy.
Direct OEM Fitment: Pivot bores, clamping slots, and locating pin holes are machined strictly to original factory specifications for play-free, drop-in replacement.
3. Compatible Models
Primarily compatible with Yamaha 2-stroke 9.9 HP and 15 HP outboard engines:
Yamaha 9.9 HP 2-Stroke Series: 9.9F, 9.9D, E9.9D models
Yamaha 15 HP 2-Stroke Series: 15F, 15D, E15D, 15F Enduro commercial models
Engine Architecture: Yamaha 63V / 63W / 6B4 2-stroke platforms
4. Aftermarket & Brand Compatibility
OEM Brand Fitment:
Yamaha Marine: Specifically engineered for Yamaha 9.9HP and 15HP 2-stroke shift linkage mechanisms.
PREMARINE Brand Aftermarket Replacement:
PREMARINE Quality Standard: PREMARINE specializes in high-reliability marine shift mechanisms, controls, and powertrain components. This shift rod lever is manufactured with high-tensile anti-corrosion alloys.
Direct OEM-Level Performance: Dimensional tolerances, bore wear resistance, and structural strength meet or exceed OEM standards, serving as the premier cost-effective solution for eliminating shift slop and restoring precise shift control during marine servicing.
5. Common Symptoms & Troubleshooting
Difficulty Shifting / Unable to Engage Forward or Reverse:
Cause: Excessive play in the lever pivot bore or a bent shift arm resulting in insufficient travel to move the shift plunger.
Troubleshooting: Move the shift handle while inspecting the lever; check for excessive play, wobbling, or structural bending at the linkage connection.
Slipping Out of Gear / Popping into Neutral Under Load:
Cause: Loose clamping or worn lever linkage preventing the clutch dog from fully seating into the gear detent position.
Troubleshooting: Ensure the clamping pinch bolt is tightened to spec; inspect lever contact faces for wear and alignment.
Stiff or Jammed Shift Lever Action:
Cause: Salt crust buildup, corrosion, or lack of lubrication around the pivot pin mating surface.
Troubleshooting: Remove and clean salt deposits from the linkage pivot, apply marine-grade waterproof grease, and replace the lever if the bore interior is scored or ovalized.
OEM Part Numbers
Compatible OEM references include:
63V-44125-00
63V-44125-01
63V-44125-00-00
63V-44125-01-00
Compatible Engine Models
This Shift Rod Lever is primarily designed for:
2-Stroke 9.9/15HP
If you are unsure about compatibility, please provide your engine model number or identification plate for verification before ordering.
Applications
This Shift Rod Lever is commonly used for:
Outboard engine repair
Engine rebuilding projects
Marine maintenance workshops
Boat fleet maintenance
Commercial fishing vessels
Recreational boats
Marine spare parts distribution
