65750-98505 65750-98505-000 65750-98504 65750-98503
PREMARINE
| Quantity: | |
|---|---|
1. Technical Specifications
| Parameter | Specification / Detail |

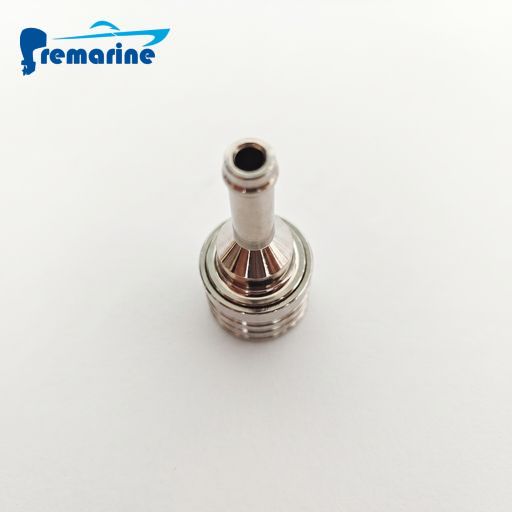

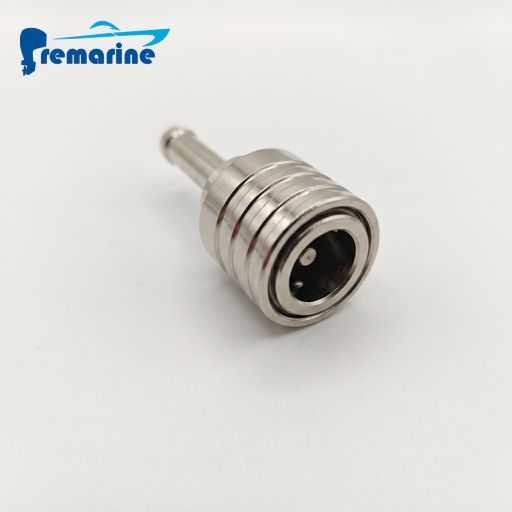

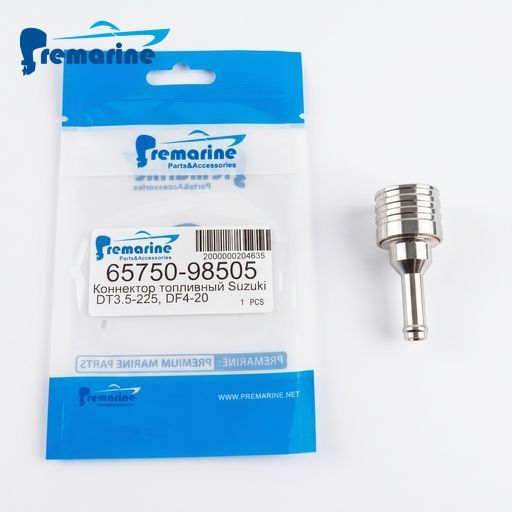

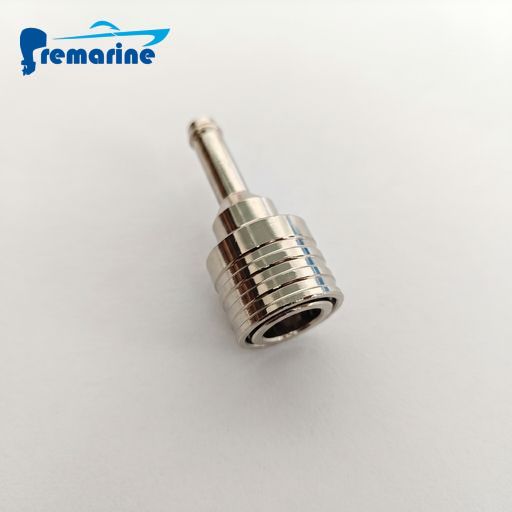

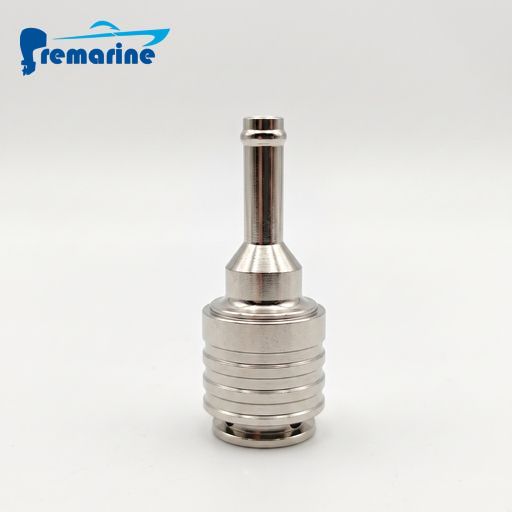

| Component Type | Marine All-Metal Fuel Hose Female Quick Connector Socket |
| OEM & Interchange Part Numbers | 65750-98505 / 65750-98505-000 / |
| Housing Material | Marine-grade solid forged brass with heavy-duty chrome plating / corrosion-proof die-cast alloy |
| Internal Hardware & Seals | 304/316 stainless steel return spring, brass plunger valve, fuel-grade Viton (FKM) O-rings |
| Mating Male Plug | Suzuki standard 2-prong male fuel plug (~13mm socket bore) |
| Hose Connection | Standard 5/16" (8mm / 8.5mm) I.D. marine fuel line hose barb |
| Operating Environment | Marine saltwater / Freshwater high-vibration, ethanol fuel (E10/E15), and extreme impact environments |
2. Key Features
Heavy-Duty All-Metal Construction: Solid chrome-plated brass body eliminates cracking, crushing, or UV embrittlement common with plastic alternatives, enduring accidental deck stepping and harsh mechanical shocks.
Corrosion-Proof Chrome Finish: Multi-layer chrome plating resists saltwater oxidation, galvanic pitting, and verdigris accumulation in severe marine environments.
Instant Automatic Shut-Off: High-precision internal check valve seals automatically the moment the fitting is disconnected, preventing deck fuel spills and vapor release.
Positive Stainless Steel Lock: Heavy-duty spring-loaded lock clip guarantees secure, vibration-proof latching onto factory male fuel plugs without air leakage under heavy chop.
3. Compatible Models
Widely compatible across Suzuki Marine 2-stroke (DT) and 4-stroke (DF) outboards:
Suzuki 2-Stroke DT Series: DT4, DT6, DT8, DT9.9, DT15, DT20, DT25, DT30, DT40 models
Suzuki 4-Stroke DF Series: DF4, DF6, DF9.9, DF15, DF20, DF25, DF30, DF40, DF50, DF60, DF70, DF90, DF115, DF140 EFI and carburetor models
Tanks & Fuel Lines: Compatible with Suzuki 12L / 24L portable fuel tanks and standard marine fuel primer bulb line assemblies
4. Aftermarket & Brand Compatibility
OEM Brand Fitment:
Suzuki Marine: Designed for genuine Suzuki DT and DF outboard fuel connection systems.
PREMARINE Brand Aftermarket Replacement:
PREMARINE Quality Standard: PREMARINE specializes in high-reliability marine metal fittings, fuel systems, and engine components. This connector is CNC-machined from solid brass bar stock and finished with industrial-grade chrome plating.
Direct OEM-Level Performance: Vacuum retention, burst pressure resistance, and cycle durability meet or exceed OEM specifications, serving as the premier heavy-duty replacement for professional workshops and commercial fleets.
5. Common Symptoms & Troubleshooting
Engine Hesitation, Surging, or Misfiring at High RPM (Air Intrusion):
Cause: Worn internal Viton O-ring drawing unmetered air into the fuel suction circuit.
Troubleshooting: Squeeze the primer bulb firmly; inspect the joint for fuel weepage or bubbling. Replace internal O-rings or renew the connector.
Fuel Weeping When Hose is Disconnected:
Cause: Dirt, varnish, or corrosion holding the spring-loaded brass check valve plunger open.
Troubleshooting: Depress the valve pin to flush debris; replace the connector if the internal spring has failed.
Sticky or Hard-to-Latch Push Button:
Cause: Salt crust buildup inside the stainless retention slide.
Troubleshooting: Rinse thoroughly with fresh water, apply marine lubricant, and verify smooth locking engagement.
OEM Part Numbers
Compatible OEM references include:
65750-98505
65750-98504
65750-98503
65750-98505-000
Compatible Engine Models
This Fuel Hose Quick Connector is primarily designed for:
2-Stroke 4-40HP
4-Stroke 4-115HP
If you are unsure about compatibility, please provide your engine model number or identification plate for verification before ordering.
Applications
This Fuel Hose Quick Connector is commonly used for:
Outboard engine repair
Engine rebuilding projects
Marine maintenance workshops
Boat fleet maintenance
Commercial fishing vessels
Recreational boats
Marine spare parts distribution
