66T-85540-00 66T-85540-01 66T-85540-00-00
PREMARINE
| Quantity: | |
|---|---|

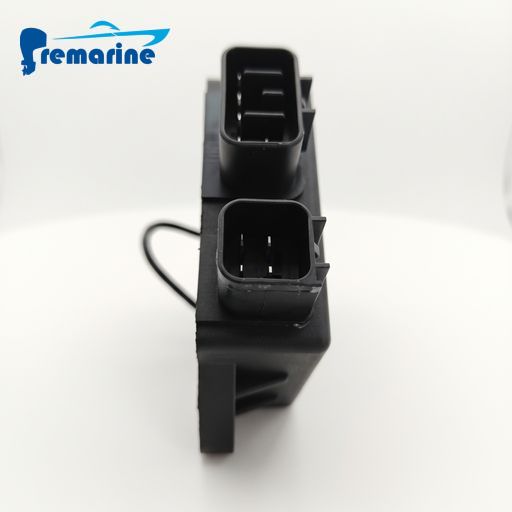

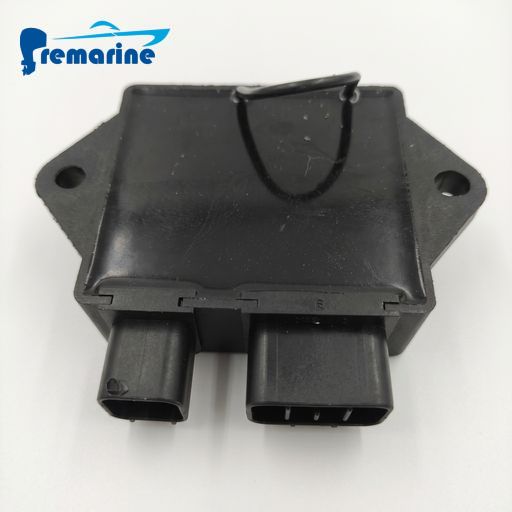

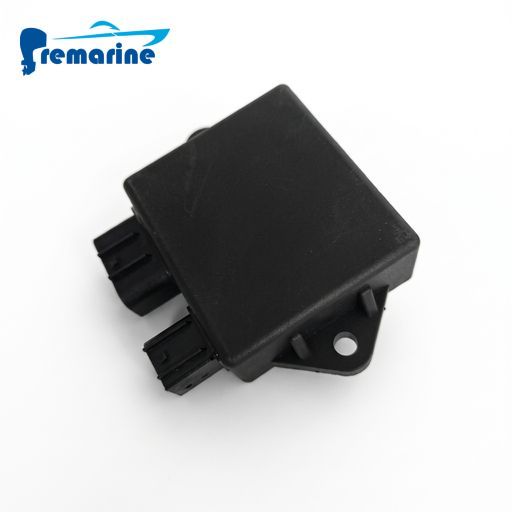

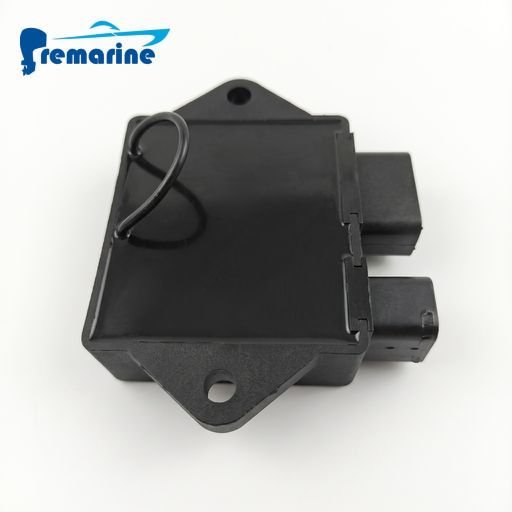

1. Technical Specifications
| Parameter | Specification / Detail |
| Component Type | Marine Powerhead Capacitor Discharge Ignition (CDI) Module Assembly |
| OEM & Interchange Part Numbers | 66T-85540-00-00 / 66T-85540-00 / 66T-85540-01-00 |
| Installation Location | Powerhead electrical bracket on the side of the engine block (Electrical 1 / Magneto) |
| Engine Platform | Inline-2 Cylinder 2-Stroke 703cc Marine Outboards (Yamaha 66T / 40X architecture) |
| Horsepower Range | Yamaha 40HP 2-Stroke models (40X, E40X, 40XMH, 40XW Enduro commercial & recreational series) |
| Ignition Architecture | Solid-state analog CDI module supporting dual-cylinder ignition synchronization |
| Encapsulation & Sealing | Marine-grade vacuum epoxy/polyurethane potted compound with factory-sealed wiring harness |
| Electrical Input/Output (DVA) | Charge Coil Input: $\approx 150\text{--}250\text{ V}$; Pulser Input: $\ge 3\text{--}5\text{ V}$; Output to Coil: $\ge 150\text{--}200\text{ V}$ |
2. Key Features & Functionality
Precise Solid-State Spark Timing: Advanced timing circuitry delivers stable timing advance curves matching engine RPM, ensuring reliable low-speed idling, crisp throttle pickup, and strong high-speed power output.
Hermetic Vacuum Resin Potting: Solid-state internals are fully potted in shock-absorbing, flame-retardant marine epoxy, isolating delicate components from vibration fatigue, humidity, and engine bay oil mists.
Direct Plug-and-Play Installation: Wire harness coloring, connector pinouts, and bracket mounting centerlines conform strictly to OEM specifications, allowing seamless drop-in replacement without wire splicing.
High Thermal Stability Electronics: High-grade capacitors and industrial-rated SCRs prevent thermal runaway and timing degradation during continuous wide-open-throttle operations.
3. Compatible Models
Primarily tailored for Yamaha 2-stroke 40HP outboards based on the 66T architecture:
Yamaha 2-Stroke 40HP Series: 40X, E40X (commercial Enduro models including manual tiller and remote control configurations: E40XMH, E40XW, E40XWT)
Clone Engines: Compatible with Parsun (T40 / T40X), Hidea (HD40F 66T series), Powertec, Seapro, and other outboard brands utilizing the Yamaha 66T electrical platform
4. Aftermarket & Brand Compatibility
OEM Brand Fitment:
Yamaha Marine: Engineered for genuine Yamaha 40HP (66T / 40X series) powerhead ignition systems.
PREMARINE Brand Aftermarket Replacement:
PREMARINE Quality Standard: PREMARINE specializes in marine electrical and ignition components, including CDI units, trigger coils, charge coils, and rectifiers. This CDI module is manufactured using automated SMT assembly lines and industrial-grade silicon semiconductors.
Direct OEM-Level Performance: Ignition advance characteristics, output DVA pulse voltages, and thermal endurance match or exceed OEM specifications, serving as the premier cost-effective solution for eliminating misfires, dead cylinders, or no-spark failures.
5. Common Symptoms & Troubleshooting
Total Loss of Spark on Both Cylinders / Engine Cranks but Won't Fire:
Cause: Breakdown of internal main storage capacitors or a blown silicon controlled rectifier (SCR).
Troubleshooting: Confirm stator charge coil and stop-switch circuits are operating normally (ensure stop wire is ungrounded); if input voltages are present but output to coils reads 0V DVA, replace the CDI unit.
Single Cylinder Dead (Firing on One Cylinder Only):
Cause: Internal component failure in one of the independent channel output circuits.
Troubleshooting: Swap the ignition coils between cylinders; if the non-firing condition stays with the same CDI output lead rather than following the coil, the CDI output is defective and requires replacement.
Engine Runs Well Cold but Stumbles, Misfires, or Cuts Out After 15–20 Minutes:
Cause: Thermal breakdown within the potted circuit; internal micro-fractures open up under heat expansion.
Troubleshooting: Measure CDI DVA output directly during the misfiring condition; if output drops precipitously when the engine warms up, the CDI has suffered thermal failure and must be replaced.
OEM Part Numbers
Compatible OEM references include:
66T-85540-00
66T-85540-00-00
66T-85540-01
Compatible Engine Models
This C.D.I. Unit is primarily designed for:
2-Stroke 40HP
If you are unsure about compatibility, please provide your engine model number or identification plate for verification before ordering.
Applications
This C.D.I. Unit is commonly used for:
Outboard engine repair
Engine rebuilding projects
Marine maintenance workshops
Boat fleet maintenance
Commercial fishing vessels
Recreational boats
Marine spare parts distribution
