689-42111-00 689-42111-00-4D 689-42111-01-4D 689-42111-02-4D
PREMARINE
| Quantity: | |
|---|---|
1. Technical Specifications
| Parameter | Specification / Detail |

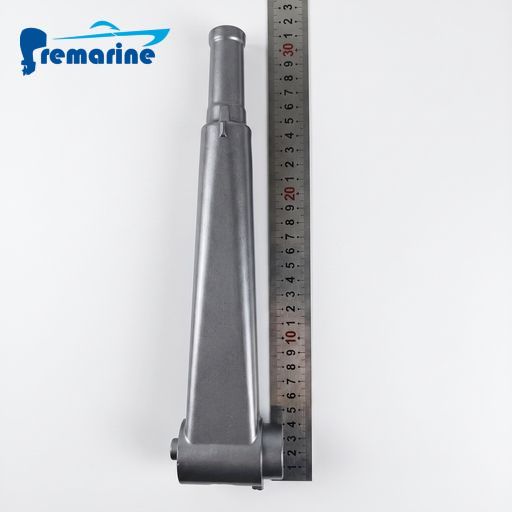

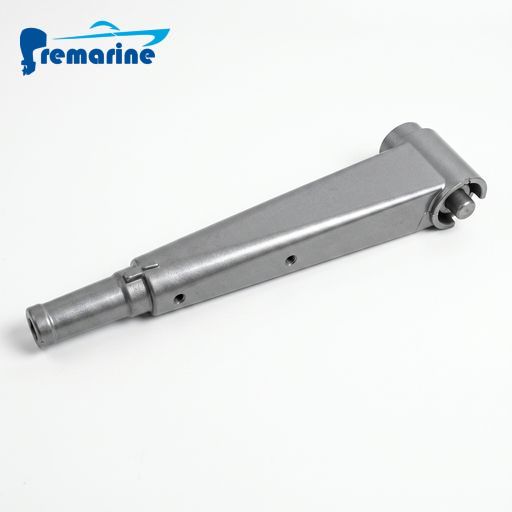

| Component Type | Outboard Marine Steering Tiller Handle Casting / Handle Body |
| OEM & Interchange Part Numbers | 689-42111-00-4D / 689-42111-01-4D / 689-42111-02-4D / 689-42111-03-4D |
| Installation Location | Forward swivel bracket pivot pin area (Bracket & Steering Control section) |
| Engine Platform | Inline-2 Cylinder 2-Stroke Marine Outboard Engines (Yamaha 689 Platform) |
| Horsepower Range | Yamaha 20HP, 25HP, and 30HP 2-Stroke models (20D, 25A, 25B, 25V, 30A) |

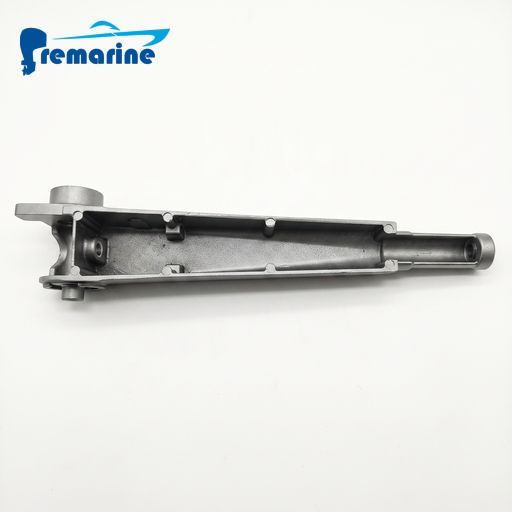

| Structural Design | Hollow-cast aluminum arm with integrated throttle barrel housing and pivot flange |
| Material Composition | Marine-grade high-tensile die-cast aluminum alloy (ADC12 / A380 class) |
| Factory Paint Code | Yamaha -4D Metallic Deep Gray / Gray baked marine coating |
2. Key Features & Functionality
High Torsional Rigidity: Engineered with structural stiffening ribs to handle severe wave chop and hard steering loads without flexing or binding.
Precision CNC Pivot Bore: The hinge mounting hole is precision CNC-machined to ensure a tight, wobble-free fit with pivot pins and bushings, eliminating sloppy tiller play.
Smooth Internal Cable Routing: Deburred internal cavities allow throttle cables and electrical kill wires to route freely without chafing, fraying, or short-circuiting.
Saltwater Corrosion Defense: Multi-stage chemical conversion coating and high-temperature baked enamel finish provide robust protection against marine salt fog and UV radiation.
3. Compatible Models
Primarily compatible with Yamaha 2-stroke 20HP–30HP tiller-steered outboard platforms:
Yamaha 2-Stroke Series: 20D, 25A, 25B, 25V, 30A (689 engine series)
Clone Engines: Compatible with Parsun (T25 / T30), Hidea (HD25 / HD30), Powertec, Seapro, and other outboard brands utilizing the Yamaha 689 tiller midsection configuration
4. Aftermarket & Brand Compatibility
OEM Brand Fitment:
Yamaha Marine: Designed for genuine Yamaha 20HP to 30HP tiller handle steering and throttle linkage assemblies.
PREMARINE Brand Aftermarket Replacement:
PREMARINE Quality Standard: PREMARINE specializes in high-reliability marine steering tillers, throttle linkages, and transom bracket components. This handle body is manufactured via high-vacuum die-casting and multi-axis CNC machining.
Direct OEM-Level Performance: Pivot alignment tolerances, structural tensile strength, and paint adhesion meet or exceed OEM specifications, making it a reliable solution for curing loose or damaged tiller handles.
5. Common Symptoms & Troubleshooting
Excessive Tiller Handle Slop (Vertical or Horizontal Wobble):
Cause: Worn or ovalized pivot bore from prolonged dry metal-on-metal friction after bushings deteriorate.
Troubleshooting: Inspect the hinge bore; if it has become egg-shaped, replacing bushings alone will not resolve the play, and the handle body must be replaced.
Stress Cracks or Fractures at the Pivot Flange:
Cause: Heavy trailering shock with an unsupported engine, or severe impact during shallow-water kick-up.
Troubleshooting: Check the base casting for hairline stress cracks; never attempt to weld a fractured tiller arm, replace it immediately to avoid losing steering control.
Stiff Throttle Grip or Binding Cable:
Cause: Impact damage denting the handle barrel out-of-round, or heavy salt crust buildup inside the casting.
Troubleshooting: Clear out salt corrosion; if the aluminum casting is dented and pinching the inner throttle tube, replace the handle casting.
OEM Part Numbers
Compatible OEM references include:
689-42111-00
689-42111-00-4D
689-42111-01-4D
689-42111-02-45
Compatible Engine Models
This Steering Tiller Handle Body is primarily designed for:
2-Stroke 20/25/30HP
If you are unsure about compatibility, please provide your engine model number or identification plate for verification before ordering.
Applications
This Steering Tiller Handle Body is commonly used for:
Outboard engine repair
Engine rebuilding projects
Marine maintenance workshops
Boat fleet maintenance
Commercial fishing vessels
Recreational boats
Marine spare parts distribution
