1. Technical Overview & Identification

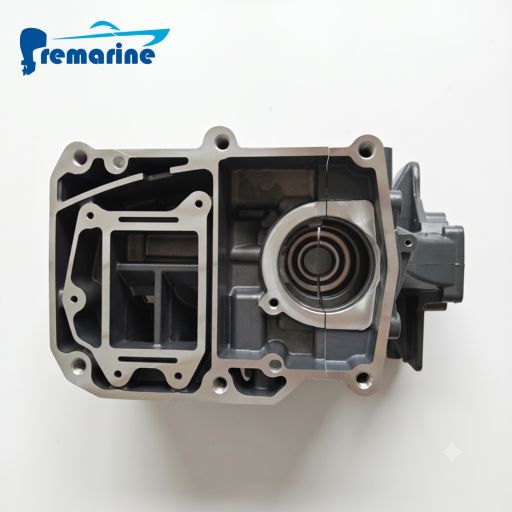

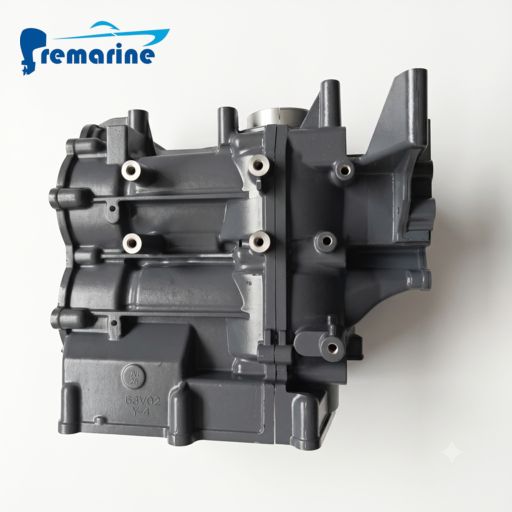

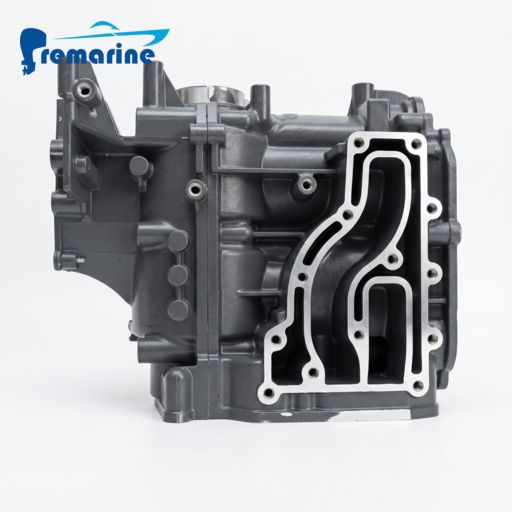

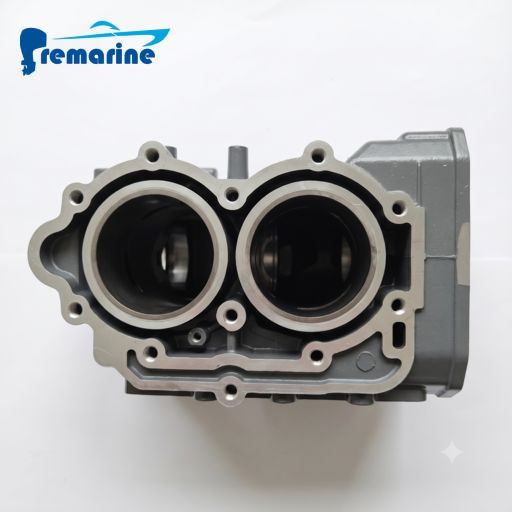

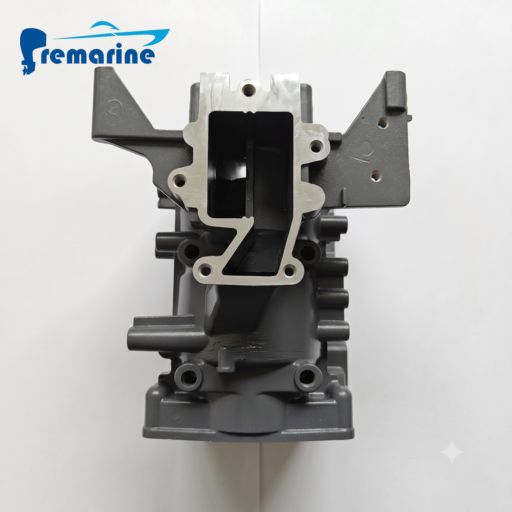

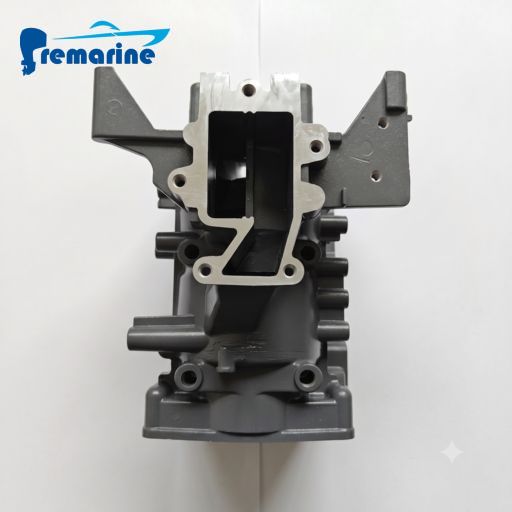

In Yamaha’s marine engine nomenclature, the 6B4 prefix signifies Yamaha's 9.9HP and 15HP 2-stroke platforms (specifically the Enduro and updated architecture series). As the core structural backbone of the powerhead, the crankcase provides a high-precision, sealed housing for the crankshaft, connecting rods, and piston assembly.

2. Core Function & Mechanical Mechanics

The crankcase serves a dual structural and operational role in 2-stroke outboard motors:

• Structural Support & Bearing Housing: Holds the crankshaft, main bearings, and oil seals in precise alignment to handle heavy mechanical loads and high-RPM combustion forces.

• Two-Stroke Primary Compression Chamber: Acts as the pre-compression chamber. It receives the air-fuel mixture via the reed valve and compresses it on the piston's downward stroke to push the charge into the combustion cylinder (scavenging process).

• Integrated Cooling Jackets: Features internal cast cooling passages connected to the cylinder block water jacket to dissipate engine heat via circulating raw water.

• Mounting Interfaces: Provides precision-mating faces for the intake manifold, exhaust passages, and lower base plate, isolating air, oil, and cooling water.

3. Engine Compatibility

This crankcase assembly is widely standard equipment on Yamaha and platform-derived 2-stroke 9.9HP and 15HP outboard engines:

• Yamaha Outboards:

• E9.9D / E15D (Enduro Series 2-Stroke 9.9HP / 15HP)

• 15F / 9.9F (Updated platform 2-Stroke 9.9HP / 15HP)

• Rebadged Brands: Outboard models built on the Yamaha 6B4 / 661 2-stroke platform.

4. Aftermarket & Brand Compatibility

Because the Yamaha 15HP (6B4 / 63V architecture) is one of the most widely used outboard engine platforms globally for commercial fishing and marine transport, it is fully supported in the aftermarket:

• PREMARINE Brand Replacement: As a trusted marine parts brand, PREMARINE offers the premium aftermarket 6B4-15100-00-1S crankcase assembly engineered to meet or exceed OEM specifications. Built with marine-grade anti-corrosive alloy and high-precision tolerances, it provides a reliable and cost-effective replacement solution for engine overhauls.

• Chinese Clone Engines: Major outboard brands such as Parsun, Hidea, Seapro, and Yamabisi producing 9.9HP / 15HP 2-stroke models based on Yamaha architecture can directly use PREMARINE or original 6B4-15100 parts.

• Interchangeability: Bearing seat dimensions, cylinder mounting bolt patterns, intake/exhaust ports, and water passage seals are 100% direct-interchangeable with 6B4-15100 standards.

5. Common Causes & Symptoms of Crankcase Failure

• Bearing Seat Wear / Seizure: Caused by insufficient oil-to-gas fuel ratios or overheating from water pump failure, leading to score marks or worn bearing housings.

• Air Leaks / Loss of Primary Compression: Damaged sealant joints or thermal warping causes air leaks, leading to erratic idling, hard starting, or severe loss of power.

• Corrosion & Perforation: Prolonged exposure to saltwater without fresh-water flushing can cause internal water passages to corrode, leading to cooling water leaking into the crankcase chamber.

OEM Part Numbers

Compatible OEM references include:

6B4-15100-00

6B4-15100-00-1S

Compatible Engine Models

This crankcase assembly is primarily designed for:

2-Stroke 9.9HP

2-Stroke 15HP

It is also widely used in compatible engines based on the Tohatsu, including selected models from:

Parsun

Hidea

Seapro

Yamabisi

If you are unsure about compatibility, please provide your engine model number or identification plate for verification before ordering.

Applications

This Crankcase Assembly is commonly used for:

Outboard engine repair

Engine rebuilding projects

Marine maintenance workshops

Boat fleet maintenance

Commercial fishing vessels

Recreational boats

Marine spare parts distribution
