6C5-43821-00 6C5-43821-00-00 6C5-43821
PREMARINE
| Quantity: | |
|---|---|
1. Technical Specifications
| Parameter | Specification / Detail |

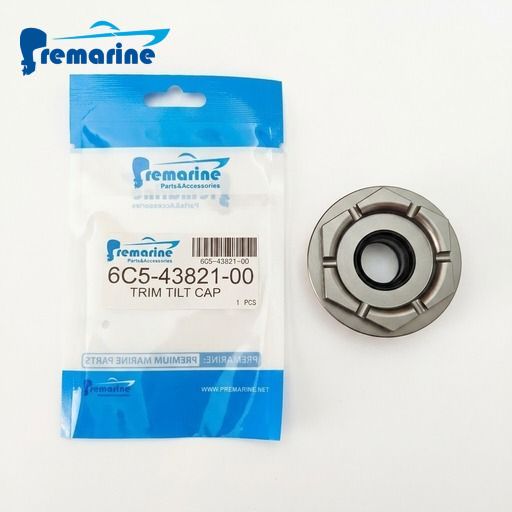

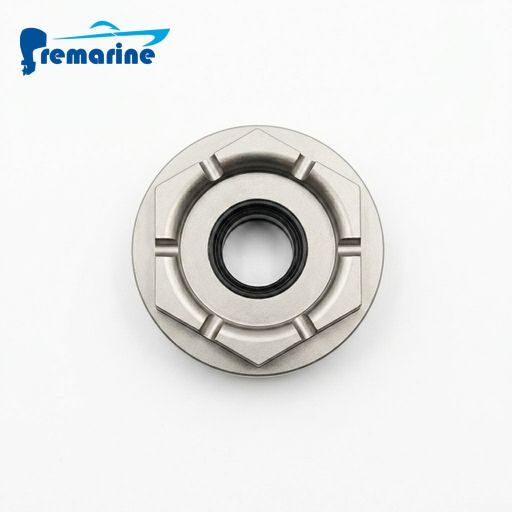

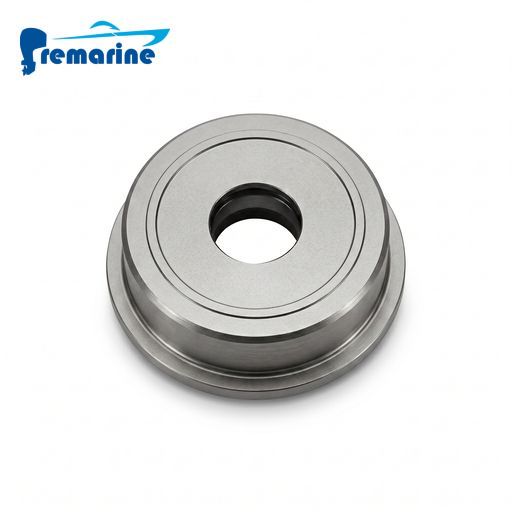

| Component Type | Power Trim & Tilt Cylinder Screw End Cap Assembly |
| OEM & Interchange Part Numbers | 6C5-43821-00-00 / 6C5-43821-00 / 6C5-43821 |
| System Compatibility | Marine Outboard Power Trim & Tilt (PTT) Hydraulic System |
| Installation Location | Top threaded opening of the hydraulic trim/tilt cylinder |
| Integrated Seals & Components | High-pressure internal rod seal, bi-directional scraper/wiper seal, outer sealing O-ring, and guide wear ring |
| Material Composition | Aircraft-grade Hard Anodized Marine Aluminum Alloy, high-grade Viton (FKM) / Polyurethane (PU) seals |
2. Key Features
Hard Anodized Corrosion Protection: Precision CNC-machined from marine-grade aluminum and finished with a military-grade hard-anodized coating to withstand severe saltwater exposure and prevent galvanic thread seizing.
Multi-Stage Hydraulic Sealing: Pre-fitted with premium high-pressure rod and wiper seals to endure peak hydraulic pressures while blocking out sand, silt, and sea spray.
Precision CNC Threading: Features exact factory thread pitches and pin-wrench spanner holes for smooth installation and accurate torque retention.
Direct OEM Fitment: Matches factory shaft and cylinder bore tolerances exactly, ensuring smooth ram movement without excessive friction or fluid bypass.
3. Compatible Models
Primarily compatible with Yamaha 4-stroke mid-range (40HP – 70HP) outboard Power Trim & Tilt systems:
Yamaha F40 Series: F40D, F40F, F40LA 4-stroke models
Yamaha F50 / T50 Series: F50F, F50H, T50LB standard & high-thrust models
Yamaha F60 / T60 Series: F60C, F60F, T60LB 4-stroke models
Yamaha F70 Series: F70A, F70LA 16-valve 4-stroke models
4. Aftermarket & Brand Compatibility
OEM Brand Fitment:
Yamaha Marine: Engineered for Yamaha 40HP to 70HP 4-stroke outboard Power Trim & Tilt hydraulic assemblies.
PREMARINE Brand Aftermarket Replacement:
PREMARINE Quality Standard: PREMARINE specializes in high-durability marine hydraulic and engine components. This cylinder screw cap is manufactured from heavy-duty anodized alloy and premium hydrolysis-resistant seals.
Direct OEM-Level Performance: Pressure resistance, tensile strength, and dimensional tolerances meet or exceed OEM specifications, providing a reliable, cost-effective solution for professional marine service workshops.
5. Common Symptoms & Troubleshooting
Hydraulic Fluid Leaking Around the Ram Shaft:
Cause: Worn or hardened main rod seal inside the cap, or scored seal lips caused by grit on the extended ram.
Troubleshooting: Inspect the cylinder ram for fluid residue during operation; if oil weeps out during trimming/tilting, replace the cylinder cap assembly.
Engine Drifting Down Under Load (Loss of Holding Pressure):
Cause: Deteriorated outer O-ring or blown internal rod seal allowing high-pressure fluid to bypass the cylinder chamber.
Troubleshooting: Fully raise the engine; observe if it slowly drops unassisted. Check around the cap threaded seam for escaping oil.
Milky / Emulsified Hydraulic Fluid (Water Intrusion):
Cause: Damaged wiper dust seal allowing seawater to ride the ram into the hydraulic reservoir.
Troubleshooting: Inspect fluid color in the reservoir. If milky, flush the hydraulic system and install a new PREMARINE replacement end cap.
OEM Part Numbers
Compatible OEM references include:
6C5-43821-00
6C5-43821-00-00
6C5-43821
Compatible Engine Models
This Power Trim & Tilt Cylinder Screw End Cap is primarily designed for:
4-Stroke 40/50/60/70HP
If you are unsure about compatibility, please provide your engine model number or identification plate for verification before ordering.
Applications
This Power Trim & Tilt Cylinder Screw End Cap is commonly used for:
Outboard engine repair
Engine rebuilding projects
Marine maintenance workshops
Boat fleet maintenance
Commercial fishing vessels
Recreational boats
Marine spare parts distribution
