6F6-85540-01 6F6-85540-00 6F6-85540-01-00 6F6-85540-A1
PREMARINE
| Quantity: | |
|---|---|
| Parameter | Specification |
| Part Number | 6F6-85540-01 (Supersedes: 6F6-85540-00, 6F6-85540-01-00, 6F6-85540-A1) |
| Compatible Brand | Yamaha Marine |

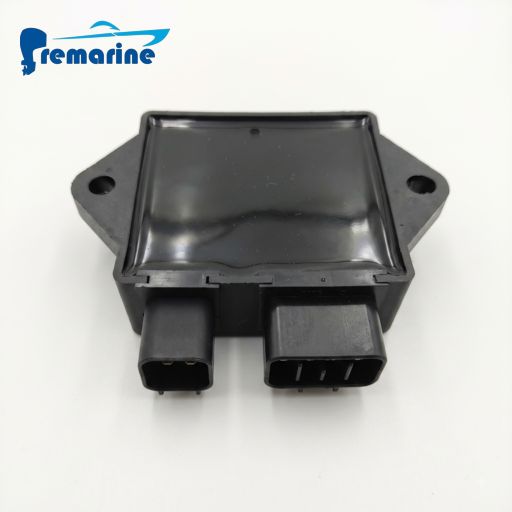

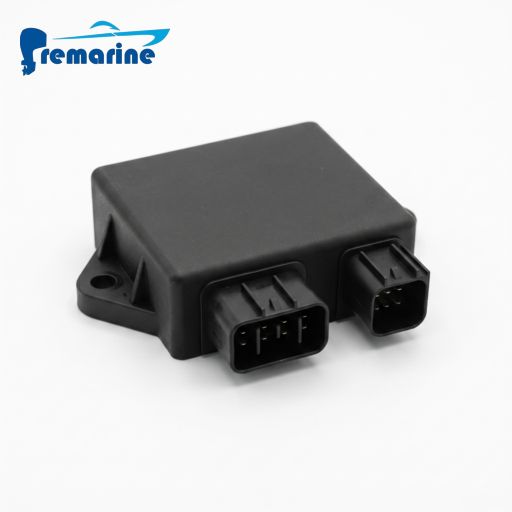

| Component Type | Outboard CDI Unit / Ignition Control Module |
| Engine Type | 2-Stroke Outboard Engines (40HP Series) |
| Material | High-Impact ABS Shell & Marine-Grade Waterproof Epoxy Encapsulation |
| Manufacturing Process | SMT Micro-Electronics & Vacuum Epoxy Potting |
| Installation | Direct OEM Plug & Play Replacement |
Precision Ignition Timing & High Output: Accurately controls high-voltage capacitor discharge timing matching OEM advance curves, ensuring complete combustion, smooth idling, and responsive throttle power.
Marine-Grade Waterproof Encapsulation: Fully potted with thermo-setting epoxy resin to seal out saltwater spray, moisture, and intense vibration, preventing internal circuit shorting.
Thermal & EMI Resistance: Engineered with heat-resistant components and electromagnetic interference shielding to operate reliably under extreme engine compartment temperatures.
Primarily compatible with Yamaha 2-stroke 40HP outboard engine platforms (featuring the 6F6 model code):
Yamaha 2-Stroke 40HP Series: 40HP, 40J, 40Q, J40, Q40 (2-cylinder 2-stroke outboard platforms).
PREMARINE Direct Replacement: PREMARINE manufactures high-precision aftermarket CDI units engineered to exact OEM 6F6-85540 mounting holes, wire color codes, and pin connectors for seamless plug-and-play installation.
PREMARINE Quality & Marine Protection: Built with upgraded high-voltage capacitors and durable flame-retardant housings, PREMARINE CDI modules deliver exceptional reliability and high cost-efficiency for Yamaha 40HP owners.
No Spark / Engine Fails to Start: A blown capacitor or burned circuit inside the CDI prevents high-voltage pulse generation, leaving spark plugs without ignition spark. Inspect stator/coil input and replace the CDI.
High-RPM Misfires & Power Loss: Thermal breakdown of internal electronic components under high engine RPMs causes intermittent ignition cutting, speed drops, or engine bogging.
Single-Cylinder Dropout / Severe Engine Shaking: If one discharge channel fails inside the dual-cylinder CDI, a cylinder drops out completely, causing severe vibration and drastic power loss. Replace the faulty CDI assembly promptly.
OEM Part Numbers
Compatible OEM references include:
6F6-85540-01
6F6-85540-00
6F6-85540-01-00
6F6-85540-A1
Compatible Engine Models
This CDI Unit is primarily designed for:
2-Stroke 40HP
If you are unsure about compatibility, please provide your engine model number or identification plate for verification before ordering.
Applications
This CDI Unit is commonly used for:
Outboard engine repair
Engine rebuilding projects
Marine maintenance workshops
Boat fleet maintenance
Commercial fishing vessels
Recreational boats
Marine spare parts distribution
