1. Technical Specifications

2. Key Features

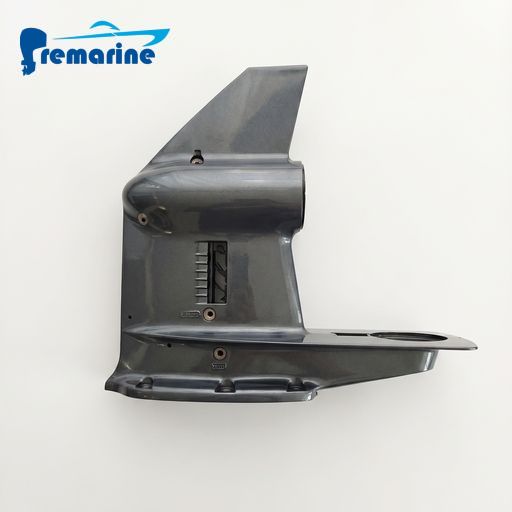

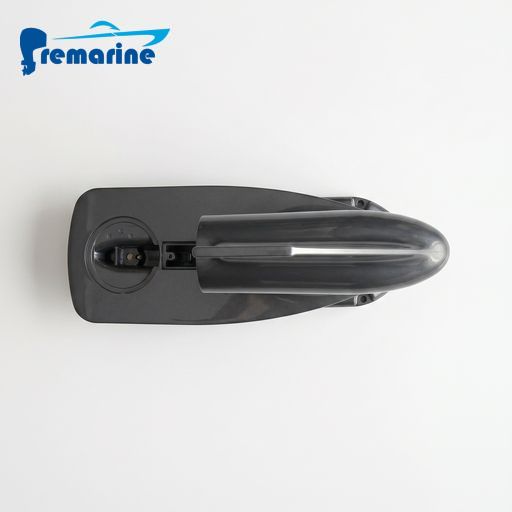

• Hydrodynamic Torpedo Profile: Features an aerodynamic torpedo bullet casing and integral skeg that cuts drag through the water while ensuring directional tracking and propeller protection.

• Marine Multi-Layer -4D Coating: Finished with professional chemical passivation and genuine -4D marine enamel paint, delivering long-term resistance against salt corrosion, galvanic pitting, and UV degradation.

• Precision CNC Bearing Bores: Machined with strict concentricity and line-boring standards, guaranteeing exact gear backlash alignment and smooth, quiet gear mesh.

• Direct OEM Bolt-on Fitment: Manufactured strictly to factory casing templates, ensuring flawless alignment with upper driveshaft housings, water pickup grilles, and exhaust conduits.

3. Compatible Models

Primarily compatible with Yamaha 2-stroke outboards engineered on the 6J4 platform:

• Yamaha 25 HP 2-Stroke Series: 25J, 25V models

• Yamaha 30 HP 2-Stroke Series: 30D, 30G, 30H (2-cylinder and 3-cylinder models)

• Architecture: Yamaha 6J4 / 6J8 platform lower gearcase propulsion systems

4. Aftermarket & Brand Compatibility

• OEM Brand Fitment:

• Yamaha Marine: Designed for Yamaha 25HP and 30HP 2-stroke outboard lower gearcase units.

• PREMARINE Brand Aftermarket Replacement:

• PREMARINE Quality Standard: PREMARINE specializes in premium marine gearcases, lower units, and powertrain components. This gearcase housing is manufactured from high-purity aluminum alloys utilizing high-density pressure casting to eliminate internal porosity and casting voids.

• Direct OEM-Level Performance: Critical tolerances, pressure-seal retaining strength, and impact resistance meet or exceed OEM specifications, making it the premier cost-effective solution for professional marine service centers and rebuild projects.

5. Common Symptoms & Troubleshooting

• Gearcase Water Contamination Despite New Oil Seals:

• Cause: Corrosion pitting on the internal oil seal counterbores, or hairline stress cracks in the housing body caused by impact.

• Troubleshooting: Perform a 10–12 PSI gearcase pressure test submerged in water; inspect for bubbles escaping around the housing walls, seams, or seal pockets.

• Excessive Gear Whine / Premature Gear Tooth Failure:

• Cause: Warped or misaligned bearing bores from physical impact throwing the bevel gears out of proper backlash clearance.

• Troubleshooting: Disassemble the gearcase; use dial indicators to check bearing bore concentricity and runout. Replace the casing if bores are out of round.

• Broken or Cracked Skeg from Grounding Impact:

• Cause: Hitting underwater sandbars, rocks, or submerged debris causing structural breakage along the bottom skeg fin.

• Troubleshooting: Inspect the break line; if the damage breaches the oil reservoir or compromises the torpedo wall, replace the housing shell immediately to protect the gear set.

OEM Part Numbers

Compatible OEM references include:

6J4-W4531-01-4D

6J4-W4531-00-4D

6J4-W4531-01

6J4-45311-00-4D

Compatible Engine Models

This Lower Casing Housing is primarily designed for:

2-Stroke 25/30HP

If you are unsure about compatibility, please provide your engine model number or identification plate for verification before ordering.

Applications

This Lower Casing Housing is commonly used for:

Outboard engine repair

Engine rebuilding projects

Marine maintenance workshops

Boat fleet maintenance

Commercial fishing vessels

Recreational boats

Marine spare parts distribution
