703-83383-11 703-83383-10 703-83383-02 703-83383-00
PREMARINE
| Quantity: | |
|---|---|
1. Technical Specifications
| Parameter | Specification / Detail |

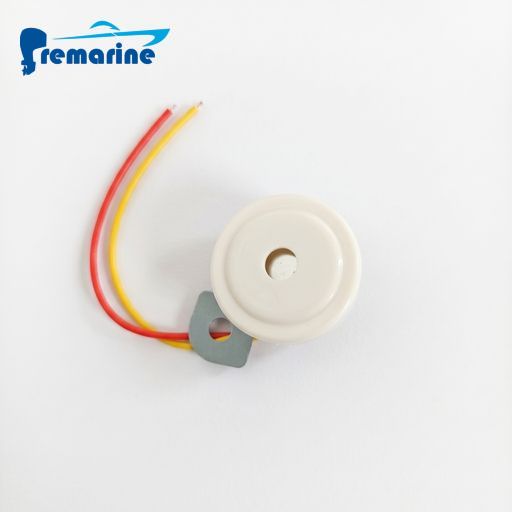

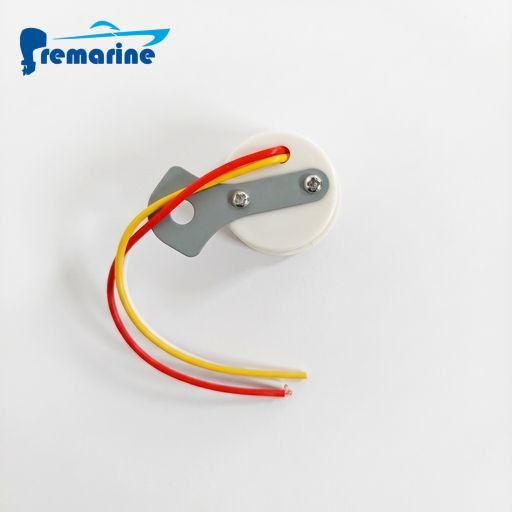

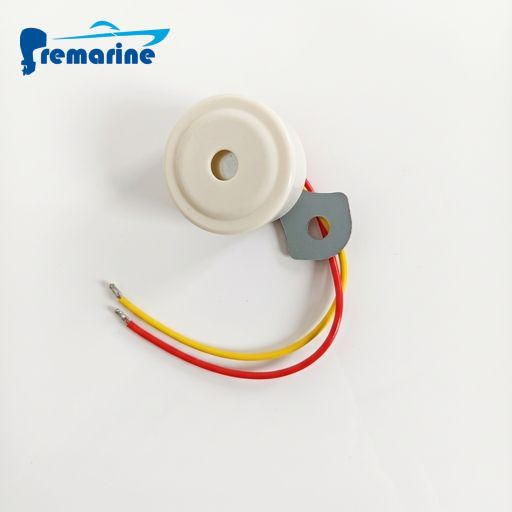

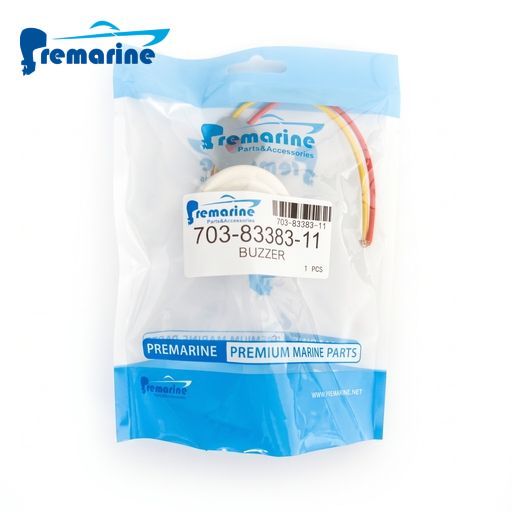

| Component Type | Marine Remote Control Box Audio Warning Buzzer / Alarm Horn |
| OEM & Interchange Part Numbers | 703-83383-11-00 / 703-83383-11 / 703-83383-10 / 703-83383-02 / 703-83383-00 |
| Installation Location | Inside the casing cavity of the Yamaha 703 remote control box (Remote Control Box chapter) |
| Electrical Rating | Operating Voltage: $12\text{ V}$ DC; low-power solid-state piezoelectric transducer |
| Sound Pressure Level (SPL) | High-penetration acoustic output approx. $85\text{--}95\text{ dB}$ at 1 meter |
| Wiring Interface | 2-wire pigtail lead (Pink warning signal lead + Black ground lead) with factory waterproof plug |
| Housing Construction | High-impact marine-grade flame-retardant ABS/nylon housing with integrated acoustic resonator |
| Environmental Protection | Resistant to marine salt fog, internal condensation dampness, engine vibration, and water spray |
2. Key Features & Functionality
High-Decibel Penetrating Alarm: Equipped with a marine-grade piezoelectric ceramic disc delivering a piercing alarm up to 95 dB, cutting through wind wash, open waters, and wide-open throttle engine roar.
Low Current Draw & Zero EMI: Solid-state transducer architecture consumes minimal operating current and generates virtually no RF noise, preventing interference with onboard GPS chartplotters, sonar, or VHF transceivers.
Hermetic Moisture & Salt Sealing: Internal drive circuitry and the piezoceramic element are fully potted with marine resin, preventing wire oxidation and solder joint breakdown in damp bilge or cockpit environments.
Direct Plug-and-Play Fitment: Mounting bracket bosses, outer body dimensions, and wire connectors match genuine Yamaha 703 internal specifications for a clean, direct drop-in replacement.
3. Compatible Models & Applications
Compatible with marine outboards rigged with standard Yamaha 703 series remote control binnacles:
Control Box Platform: Yamaha 703 side-mount mechanical throttle/shift remote control boxes (both "Push-to-Open" and "Pull-to-Open" configurations)
Outboard Horsepower Range: Yamaha 2-stroke outboards from 20HP to 250HP (e.g., 25B, 40X, 70B, 85A, 90A, 115B, 150F, 200F) and 4-stroke outboards (F25, F40, F50, F60, F70, F90, F115, etc.) connected to 703 systems
Clone Systems: Suitable for Parsun, Hidea, Powertec, Seapro, and other outboard brands utilizing the Yamaha 703 remote control architecture
4. Aftermarket & Brand Compatibility
OEM Brand Fitment:
Yamaha Marine: Designed for genuine Yamaha 703 side-mount remote control engine safety warning circuits.
PREMARINE Brand Aftermarket Replacement:
PREMARINE Quality Standard: PREMARINE specializes in marine steering and throttle control components, 703/704 control boxes, main harnesses, key switches, and audio alarms. This buzzer is manufactured using heavy-duty piezoceramic discs and precision-molded resin housings.
Direct OEM-Level Performance: Output decibel ratings, operating voltage range ($9\text{--}16\text{ V}$), cyclic shock resistance, and salt-fog endurance meet or exceed OEM specifications, serving as the premier cost-effective safeguard against engine melt-down caused by a silent or failed alarm buzzer.
5. Common Symptoms & Troubleshooting
No Beep on Initial Key-On Test / Overheat Condition Without Audible Warning:
Cause: Piezoelectric disc fracture, moisture-induced internal open circuit, or corroded harness terminal pins.
Troubleshooting: Open the 703 control box, disconnect the buzzer pigtail, and apply $12\text{ V}$ directly from a DC power source across the leads; if completely silent, the buzzer is dead and must be replaced immediately.
Faint, Scratchy, or Muffled Buzzing Noise:
Cause: Sound ports clogged with dried salt crust, dirt, or debris, or delamination of the internal resonant disc.
Troubleshooting: Clear the front grill ports; if decibel output remains significantly degraded under a standard 12V test, replace the unit.
Constant Buzzing with Key "ON" (Continuous False Alarm):
Cause: Typically not a buzzer failure; usually caused by a grounded thermal switch on the engine cylinder head or a pinched pink signal wire shorting to ground inside the control box.
Troubleshooting: Disconnect the pink temperature sensor lead at the engine block; if the alarm stops instantly, the engine switch is shorted. If it keeps buzzing, inspect the internal harness for pinched insulation shorts or replace the buzzer.
OEM Part Numbers
Compatible OEM references include:
703-83383-11
703-83383-02
703-83383-10
703-83383-00
Compatible Engine Models
This Buzzer is primarily designed for:
2-Stroke 20-250HP
4-Stroke 25-115HP
If you are unsure about compatibility, please provide your engine model number or identification plate for verification before ordering.
Applications
This Buzzer is commonly used for:
Outboard engine repair
Engine rebuilding projects
Marine maintenance workshops
Boat fleet maintenance
Commercial fishing vessels
Recreational boats
Marine spare parts distribution
