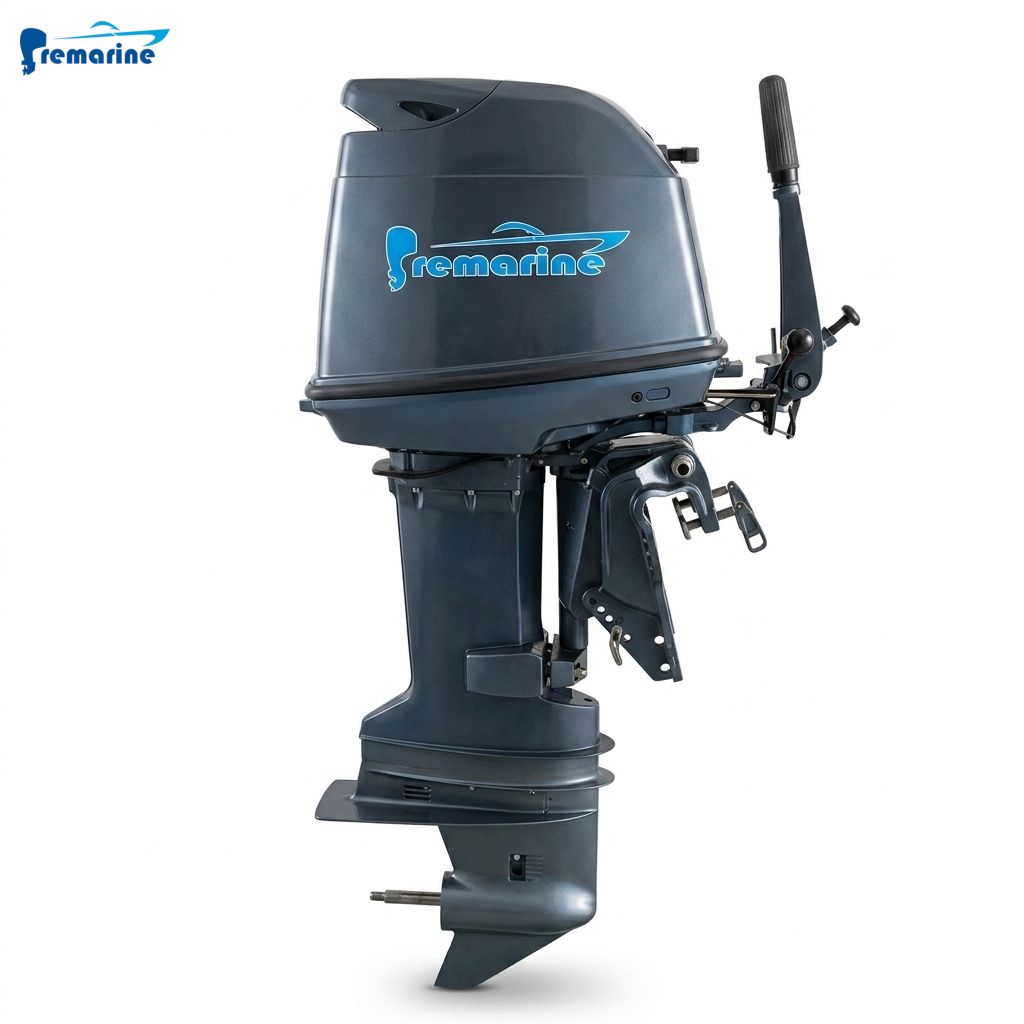

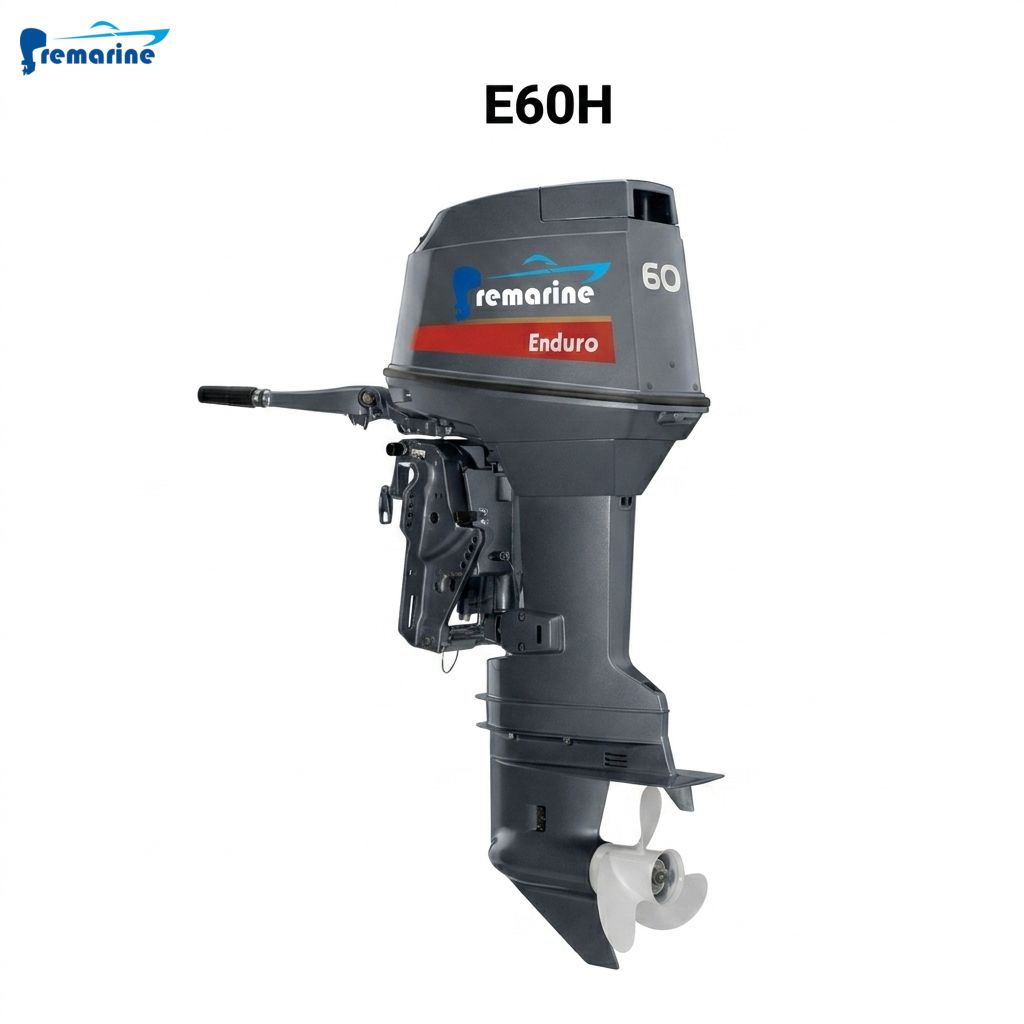

The PREMARINE 60HP 2-Stroke (commonly identified by models such as E60H, 60F, or 60T) is a commercial-grade, inline 3-cylinder outboard motor built for high torque, heavy loads, and reliable performance in severe marine environments. Part of Yamaha's Enduro commercial family, it features a durable, simplified mechanical structure optimized for easy maintenance and long operational lifespans.
Technical Specifications
Specification | Details |
Engine Type | Inline 3-Cylinder, 2-Stroke |
Displacement | ~849 cc |
Bore x Stroke | 72.0 mm x 69.5 mm |
Max Output | 60 HP (44.1 kW) @ 5000 RPM |
Full Throttle Range | 4500 – 5500 RPM |
Fuel Induction | Loop-charged 3-Carburetor configuration |
Starting System | Manual or Electric Start (model variance) |
Control System | Tiller Handle or Remote Control |
Gear Ratio | 2.33:1 (28:12) or 1.85:1 (24:13) depending on gearcase type |
Trim & Tilt | Manual Tilt / Hydro Tilt / Power Trim & Tilt |
Fuel Mix Ratio | 50:1 (Gasoline : TC-W3 2-stroke oil) |
Transom Heights | Long (L: 20"), Extra Long (X: 25") |
Key Features & Operational Highlights
Inline 3-Cylinder Power: Delivers a balanced power stroke for superior low-end torque, essential for heavy workboats or multi-passenger transport.
Triple Carburetor Setup: Independent carburetion per cylinder provides precise throttle response and optimized fuel distribution across the RPM band.
Engine Protection Systems: Thermal sensors and oil-level alarms integrated with the CDI unit prevent overheating and mechanical seizure.
Heavy-Duty Gearcase: Reinforced lower unit housing, high-strength drive shafts, and enlarged bevel gears designed for continuous commercial loads.
Common OEM Replacement Parts
Impeller / Water Pump Rebuild Kit: 6H3-44352-00 / 61A-W0078-A2
Carburetor Repair Kit: 6H3-W0093-00
CDI Ignition Unit: 6H2-85540-10 / 6H3-85540-00
Piston Assembly (STD): 6H3-11631-01-96
Propeller Shaft / Drive Shaft: 6H3-45611-00 / 6H3-45501-00
Thermostat: 6E5-12411-30
Aftermarket & Clone Engine Cross-Compatibility
The Yamaha 60HP 2-stroke engine platform (849cc architecture) is widely utilized globally as the foundational blueprint for aftermarket manufacturers and clone outboard production.
PREMARINE Brand Compatibility: PREMARINE manufactures a complete line of direct-fit aftermarket components and complete outboard assemblies engineered to match Yamaha 60HP OEM tolerances. PREMARINE replacement coverage includes:
Complete lower unit gearcase assemblies, pinion/forward/reverse gear sets, and propeller shafts.
Electrical ignition system components, including CDI boxes, stator coils, charge coils, and rectifier-regulators.
Engine block overhaul kits, including pistons, rings, wrist pins, rod bearings, and complete gasket sets.
High-durability water pump kits, impellers, and stainless steel wear plates.
